Name: Packing Machine S Series Worm Gear Reducer Stepper Motor Gear Reducer Drive Gear Reducer Helical Friction Gearbox
Brand: Packing Machine S Series Worm Gear Reducer Stepper Motor Gear Reducer Drive Gear Reducer Helical Friction Gearbox
SKU: Packing Machine S Series Worm Gear Reducer Stepper Motor Gear Reducer Drive Gear Reducer Helical Friction Gearbox
Price: 300.00 USD
Availability: InStock
Rating: 4.6 (119 reviews)

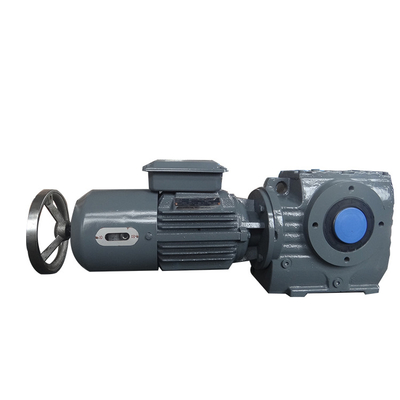

Packing Machine S Series Worm Gear Reducer Stepper Motor Gear Reducer Drive Gear Reducer Helical Friction Gearbox

1 Set

MOQ

$300.00(>=1 Sets)

цена

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction worksÂ , Energy & Mining, other

Gearing Arrangement: Worm

Output Torque: up to 4000Nm

Input Speed: <2000rpm

Output Speed: 0.15~270rpm

Material of housing: HT250 cast iron

Material of gear: 20CrMnTi with high precision grinding

gear surfcae finishing: between16.-3.2Î¼m

Material of shaft: 40Cr with carburizing and quenching

Warranty: 12months

Input format: IEC flange, direct with motor, shaft input

Lubricant: Shell Omala220 or equivalent

Gear Ratio: any ratio custom made

OEM service: available

Application: packing machine, food process, lift, crane, agitator, feeder

Основная информация

Оплата и доставка Условия

Packaging Details: Export Standard wooden case, plywooden case with pallet

Supply Ability: 3000 Set/Sets per Month

Характер продукции

Product Description

KINGEAR-transmission helical-worm gear reducer are helical/ helical-worm combinations, so they are more efficient than normal worm gear unit. Due to their outstanding efficiency, our gear box can be used in every industry and tailored to individual torque and speed requirements. The reduction ratios afforded by the helical – worm gear stage and the low noise levels during operation make these gearmotors ideal low –cost solutions for simple applications.

SPECIFICAITON

Housing material	High-strength cast iron HT250
Gear material	20CrMnTi
Input Power	0.12-90KW
Output Torque	3.5-4000N.m
Output Speed	5-371 RPM
Gear Accuracy	7 to 6 level
Gear Surface hardness	HRC58°-62°
Input/Output shaft hardness	HB220-250
Noise(Max)	60-70dB
Tem.rise(Max)	40°C
Tem.rise(Oil Max)	50°C
Vibration	≤20um
Backlash	≤20Arcmin
Effeciency	Single stage 98%, Double-stage:96%, Three-stage:94%
Mounting Position	Foot / Flange Mounting
Motor	IP55,F Class

OUR GEAR AND HOUSING

Company profile

our factory

Advantages

Packing Machine S Series Worm Gear Reducer Stepper Motor Gear Reducer Drive Gear Reducer Helical Friction Gearbox
