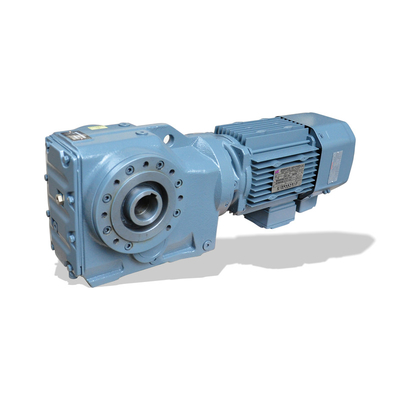

Factory KA series heli-bevel helical bevel gear speed reducer with high quality motor

10 Pieces
MOQ
$200.00(>=10 Pieces)
цена
Factory KA series heli-bevel helical bevel gear speed reducer with high quality motor
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 Year, 12 Months
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining
Customized support: OEM, ODM, OBM
Gearing Arrangement: Helical
Output Torque: up to 50000Nm
Input Speed: up to 200rpm
Output Speed: up to 400rpm
Ratio: up to 10000
Mounting Position: Foot Mounted,flange Mounted
Gear material: 20CrMnTi
Housing Material: HT200
Heat treatment: Normalizing,carburizing,high-frequency heating,quenching
Bearing: NSK,HRB,ZWZ,C&U,etc
Certificate: ISO9001:2015,ISO14001:2015
Color: Blue RAL5010,grey RAL7040/7031
Сертификация: CE, ISO9001:2015
Основная информация
Сертификация: ISO9001:2015,ISO14001:2015, CE, ISO9001:2015
Оплата и доставка Условия
Packaging Details: Plywood case
Supply Ability: 5000 Piece/Pieces per Month
Характер продукции



1. The structure scheme, appearance diagram and other attached diagrams in sample are examples,
there is no strict proportion requirement. If you need exact dimension of certain types, please contact
our sales dept.. (The unmarked dimension units are mm).
2. Gear unit has been tested before delivered, users should add lubrication oil before running.
3. We can only refer to the marked oil in the mannul. Actual oil filling level should be the same with
the mark on oil immersion lens.
4. Lubrication oil viscosity should be selected according to working conditions and ambient
temperature.
5. To prevent accidents, all the rotation parts should be added with protective covers according to
safety regulation of the nation and region.
6. The solid shaft input structure gear unit is not equipped with any motor.
7. Motors of Y series are supplied with protection grade of IP54 unless otherwise specified.
8. Unless otherwise specified, you will receive the terminal box at 0°.





Housing material
Cast iron/Ductile iron
Housing hardness
HBS190-240
Gear material
20CrMnTi alloy steel
Surface hardness of gears
HRC58°~62 °
Gear core hardness
HRC33~40
Input / Output shaft material
42CrMo alloy steel
Input / Output shaft hardness
HRC25~30
Machining precision of gears
accurate grinding, 6~5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Heat treatment
tempering, cementiting, quenching, etc.
Efficiency
94%~96% (depends on the transmission stage)
Noise (MAX)
60~68dB
Temp. rise (MAX)
40°C
Temp. rise (Oil)(MAX)
50°C
Vibration
≤20µm
Backlash
≤20Arcmin
Brand of bearings
China top brand bearing, HRB/LYC/ZWZ/C&U. Or other brands requested, SKF, FAG, INA, NSK.
Brand of oil seal
NAK --- Taiwan or other brands requested

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have other question, freely to contact us,please.
